Objet30 Exhaust Adapter

Goals

• Design and manufacture an exhaust adapter for a Stratasys Objet30 3D printer

• Follow an abridged version of a standard product design procedure

• Part of my internship at Syncroness

Contributions

• Fully designed and analyzed myself using Solidworks for both CAD and CFD thermal analysis

• Manufactured using an Ultimaker S5 3D printer

• Tested using custom Arduino code with a pressure sensor to confirm that the adapter does not affect the flow of the exhaust

• Presented design reviews to senior engineers for feedback and criticism

Results

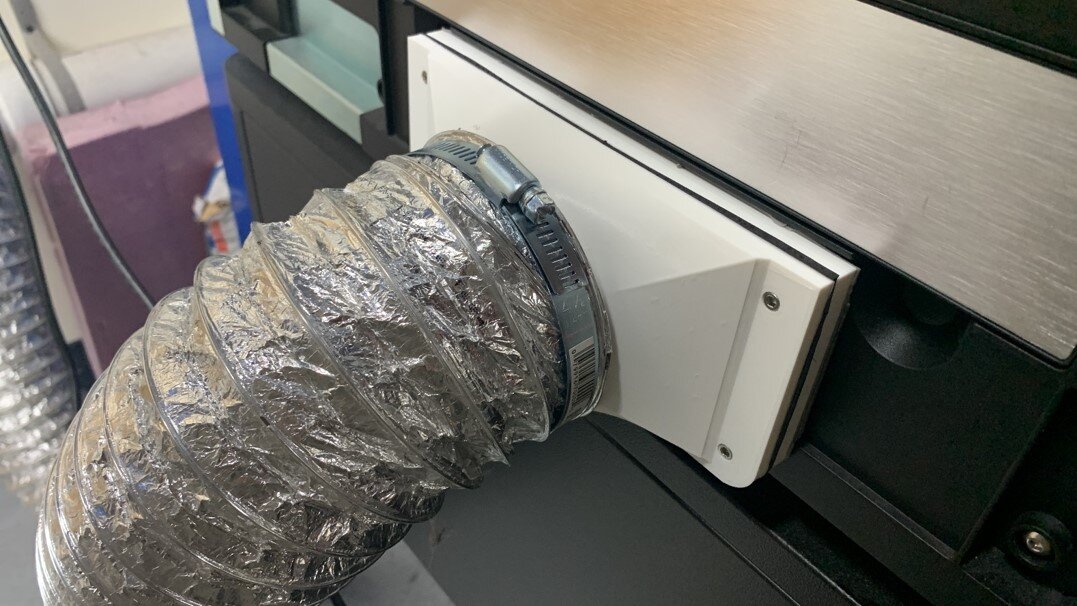

• A functional prototype that successfully ports the exhaust from the printer into the building HVAC infrastructure
